Executive standard: Q / irmv1-2008
Rated voltage: 600V
Working temperature: - 60 ~ + 200 ℃

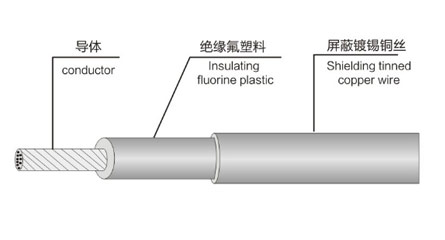

Conductor: stranded tinned or silver plated copper wire
Insulation: FEP fluoroplastic
Tinned copper wire shield
Product performance: it has excellent corrosion resistance, oil resistance, strong acid, strong alkali, strong oxidant, etc. it has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent fire and aging resistance and long service life.
Product technical parameters
|
横截面积 （mm2） |
导体结构 根数/线径（mm） |
绝缘厚度 （mm） |
芯数 |
（Ω/km） |
包装长度 （m） |
|
0.12 |
7/0.15 |
0.20 |
37芯以下 |
150 |
200 |
|
0.20 |
7/0.20 |
0.25 |
83.5 |
200 | |
|
0.35 |
19/0.16 |
0.25 |
49.5 |
200 | |
|
0.50 |
19/0.18 |
0.25 |
36.0 |
200 | |
|
0.75 |
19/0.23 |
0.25 |
22.7 |
200 | |
|
1.0 |
19/0.26 |
0.25 |
19.0 |
200 | |
|
1.5 |
19/0.32 |
0.30 |
11.7 |
100 | |
|
2.0 |
19/0.37 |
0.30 |
8.45 |
100 | |
|
2.5 |
19/0.41 |
0.40 |
6.86 |
100 |
