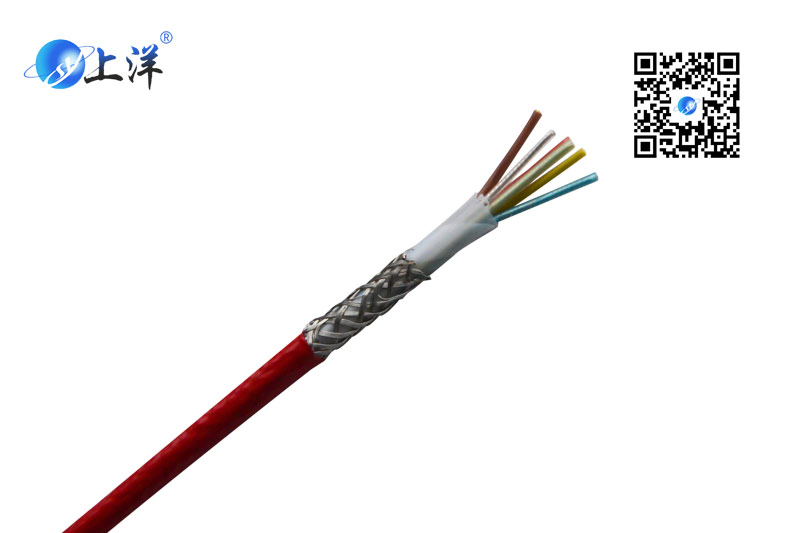

氟塑料绝缘高温电缆200℃ 250℃ AFF

Home > Products >

氟塑料绝缘高温电缆200℃ 250℃ AFF

Executive standard: Q / irmv1-2008

Rated voltage: 600V

Working temperature: - 60 ~ + 200 ℃ / 250 ℃

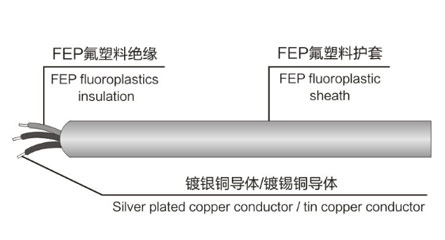

Conductor: stranded tinned or silver plated copper wire

Insulation: FEP (200 ℃) or PTFE (250 ℃) fluoroplastic

Sheath: FEP (200 ℃) or PTFE (250 ℃) fluoroplastic

Color: red, yellow, blue, white, black, brown, green, etc.

Product performance: it has excellent corrosion resistance, oil resistance, strong acid, strong alkali, strong oxidant, etc. it has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent fire and aging resistance and long service life.

Product technical parameters

芯数×截面（mm²）	导体结构根数/线径（mm）	绝缘		护套		20℃时导体直流电阻（Ω/km）
芯数×截面（mm²）	导体结构根数/线径（mm）	厚度	外径	厚度	外径	20℃时导体直流电阻（Ω/km）
2×0.12	7/0.15	0.20	0.85	0.25	2.20	150
3×0.12	7/0.15	0.20	0.85	0.25	2.30	150
4×0.12	7/0.15	0.20	0.85	0.25	2.60	150
5×0.12	7/0.15	0.20	0.85	0.25	2.80	150
6×0.12	7/0.15	0.20	0.85	0.25	3.10	150
7×0.12	7/0.15	0.20	0.85	0.30	3.15	150
2×0.2	7/0.20	0.20	1.0	0.25	2.50	83.5
3×0.2	7/0.20	0.20	1.0	0.25	2.60	83.5
4×0.2	7/0.20	0.20	1.0	0.25	2.90	83.5
5×0.2	7/0.20	0.20	1.0	0.25	3.20	83.5
6×0.2	7/0.20	0.20	1.0	0.30	3.60	83.5
7×0.2	7/0.20	0.20	1.0	0.30	3.60	83.5
19×0.2	7/0.20	0.20	1.0	0.40	5.80	83.5
2×0.35	19/0.16	0.25	1.30	0.25	3.10	49.5
3×0.35	19/0.16	0.25	1.30	0.25	3.20	49.5
4×0.35	19/0.16	0.25	1.30	0.25	3.65	49.5
5×0.35	19/0.16	0.25	1.30	0.30	4.10	49.5
6×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
7×0.35	19/0.16	0.25	1.30	0.30	4.50	49.5
19×0.35	19/0.16	0.25	1.30	0.40	7.30	49.5
2×0.5	19/0.18	0.25	1.40	0.25	3.30	36.0
3×0.5	19/0.18	0.25	1.40	0.25	3.40	36.0
4×0.5	19/0.18	0.25	1.40	0.30	4.0	36.0
5×0.5	19/0.18	0.25	1.40	0.30	4.40	36.0
6×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
7×0.5	19/0.18	0.25	1.40	0.30	4.80	36.0
19×0.5	19/0.18	0.25	1.40	0.50	8.0	36.0
2×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
3×0.75	19/0.23	0.25	1.70	0.30	4.0	22.7
4×0.75	19/0.23	0.25	1.70	0.30	4.70	22.7
5×0.75	19/0.23	0.25	1.70	0.35	5.30	22.7
6×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
7×0.75	19/0.23	0.25	1.70	0.35	5.80	22.7
19×0.75	19/0.23	0.25	1.70	0.50	9.50	22.7
2×1	19/0.26	0.25	1.80	0.30	4.20	19.0
3×1	19/0.26	0.25	1.80	0.35	4.30	19.0
4×1	19/0.26	0.25	1.80	0.35	5.10	19.0
5×1	19/0.26	0.25	1.80	0.35	5.60	19.0
6×1	19/0.26	0.25	1.80	0.40	6.20	19.0
7×1	19/0.26	0.25	1.80	0.40	6.20	19.0
8×1	19/0.26	0.25	1.80	0.40	6.80	19.0
19×1	19/0.26	0.25	1.80	0.60	10.20	19.0
2×1.5	19/0.32	0.30	2.25	0.35	5.20	11.7
3×1.5	19/0.32	0.30	2.25	0.35	5.30	11.7
4×1.5	19/0.32	0.30	2.25	0.40	6.20	11.7
5×1.5	19/0.32	0.30	2.25	0.40	6.80	11.7
6×1.5	19/0.32	0.30	2.25	0.40	7.50	11.7
7×1.5	19/0.32	0.30	2.25	0.40	7.60	11.7
19×1.5	19/0.32	0.30	2.25	0.60	12.5	11.7
2×2.5	19/0.41	0.40	2.80	0.40	6.40	6.86
3×2.5	19/0.41	0.40	2.80	0.40	6.40	6.86
4×2.5	19/0.41	0.40	2.80	0.40	7.60	6.86
5×2.5	19/0.41	0.40	2.80	0.50	10.30	6.86
6×2.5	19/0.41	0.40	2.80	0.50	9.40	6.86
7×2.5	19/0.41	0.40	2.80	0.50	9.40	6.86
19×2.5	19/0.41	0.40	2.80	0.70	15.40	6.86
