Product executive standard: Q / irmv-2008
Rated voltage: 600V
Temperature range: 800 ℃
Conductor: stranded stainless steel wire
Color: mainly white
Delivery length: short line sections not less than 10m are allowed, but the quantity shall not exceed 10% of the total delivery quantity
Laying conditions: fixed laying, flame burning, no harmful and toxic gas
Product application: in aerospace, metallurgy, petroleum, chemical industry, thermoelectric, electromechanical and other high-temperature work fields, it can replace imports.

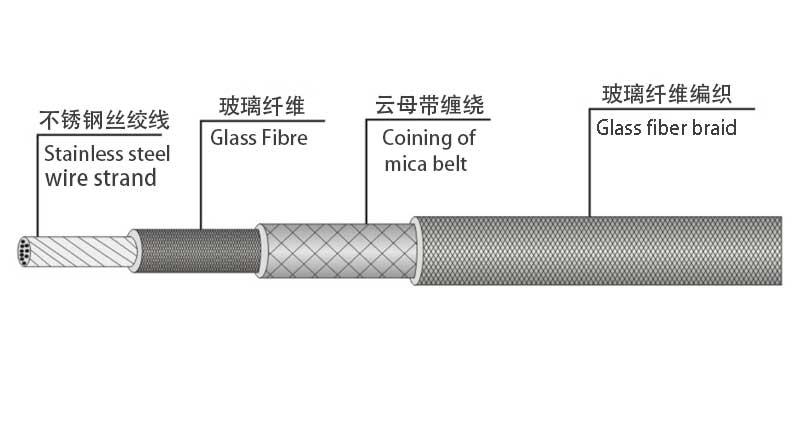

Model and structure
|
标准截面 mm2 |
导体结构 （根数/线径 mm） |
平均外径 mm |
包装长度 m |
|
1 |
14/0.30 |
4.1±0.5 |
200 |
|
1.5 |
21/0.30 |
4.5±0.5 |
100 |
|
2 |
28/0.30 |
4.8±0.5 |
100 |
|
2.5 |
35/0.30 |
5.1±0.5 |
100 |
|
4 |
56/0.30 |
5.6±0.5 |
100 |
|
6 |
84/0.30 |
6.5±0.5 |
100 |
|
10 |
140/0.30 |
7.6±0.5 |
100 |
|
16 |
228/0.30 |
9.0±0.5 |
100 |
|
25 |
361/0.30 |
10.5±0.5 |
100 |
|
35 |
494/0.30 |
12.5±1.0 |
100 |
|
50 |
703/0.30 |
13.2±1.0 |
100 |
|
70 |
988/0.30 |
15.6±1.0 |
100 |
|
95 |
760/0.40 |
17.6±1.0 |
100 |
